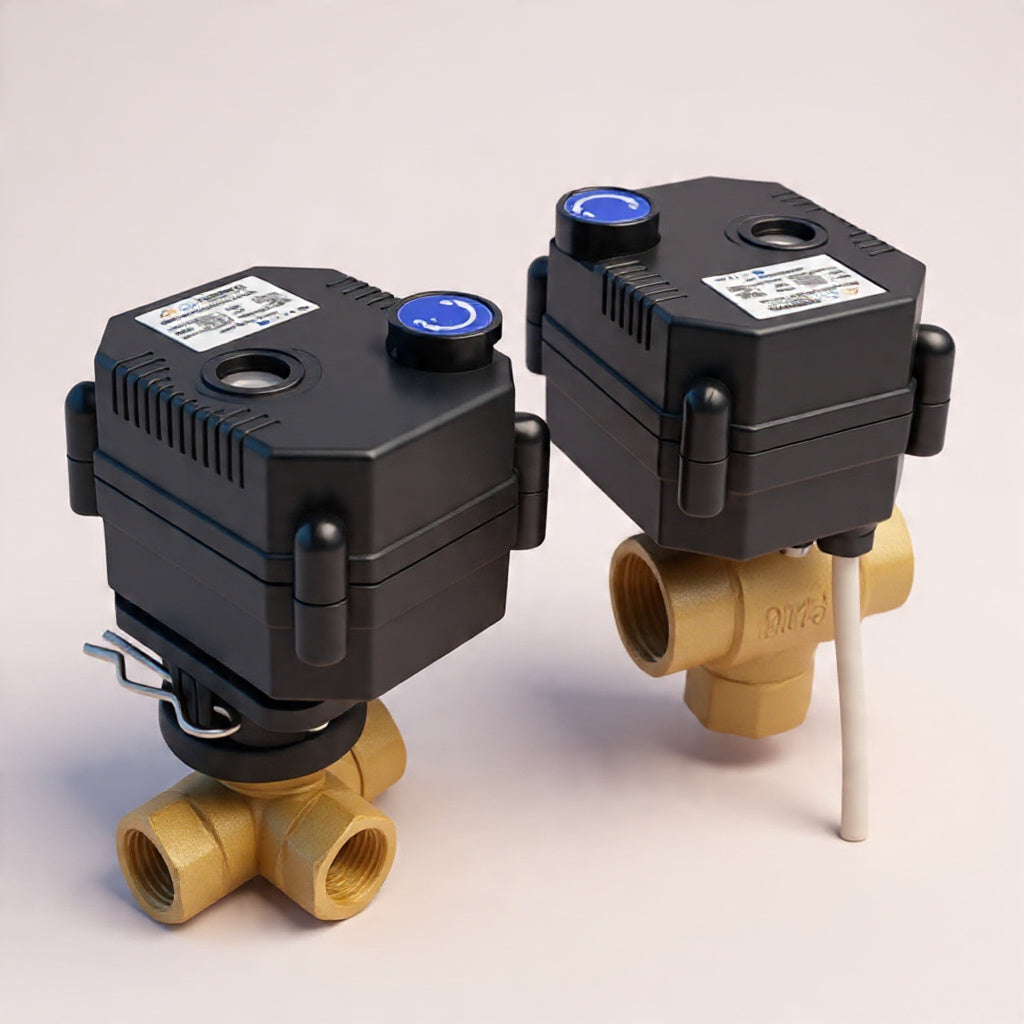

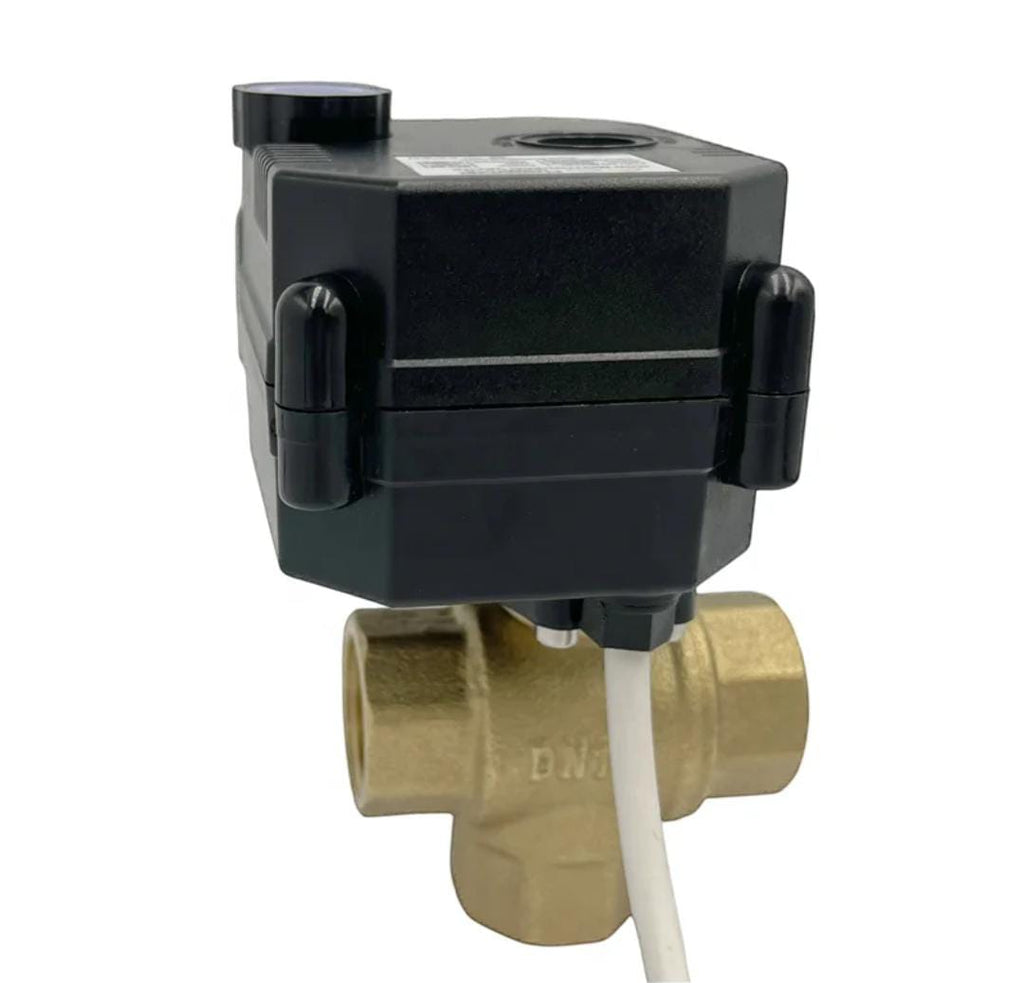

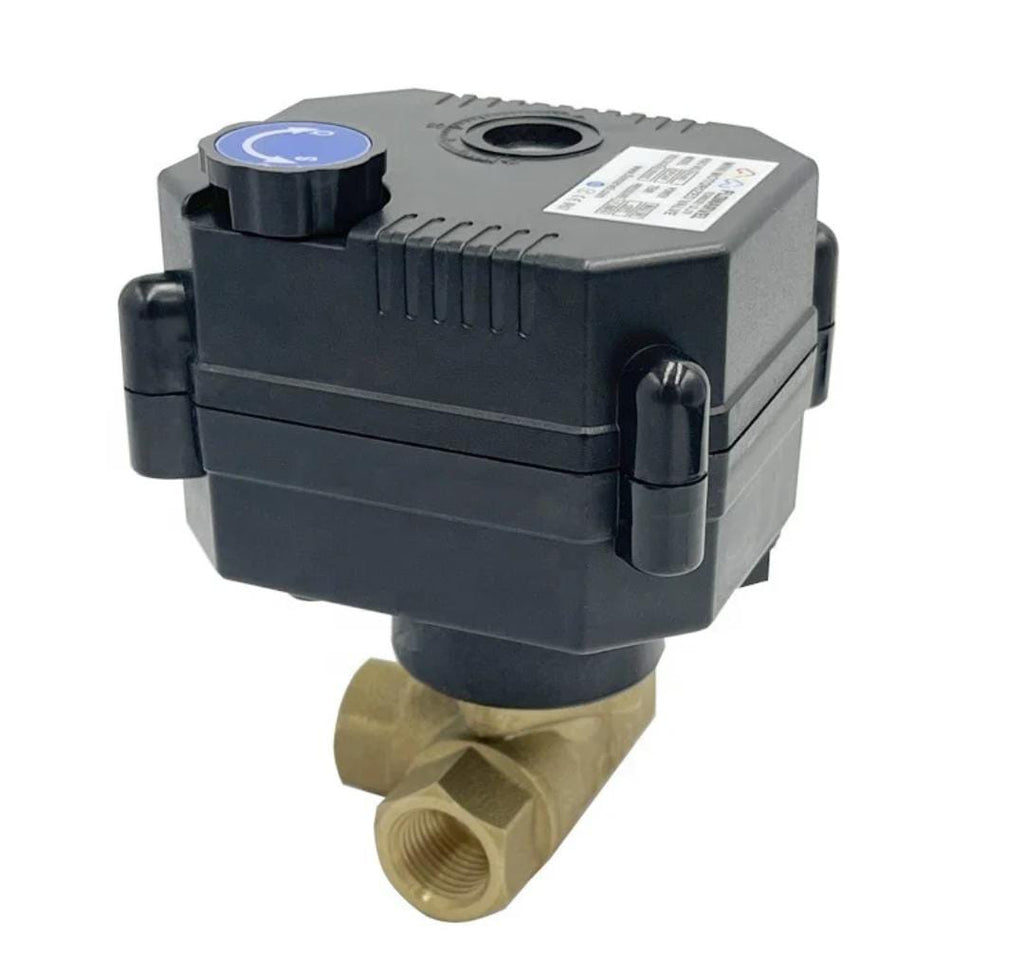

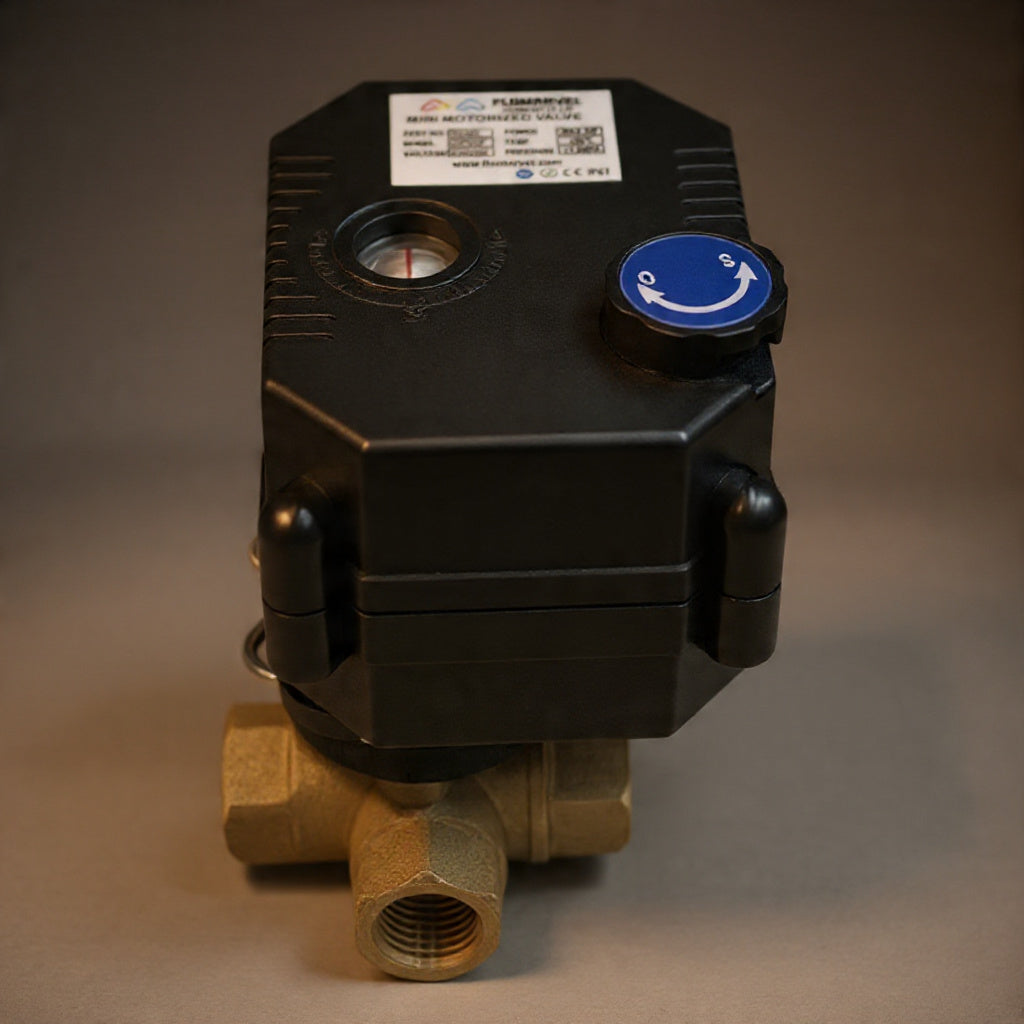

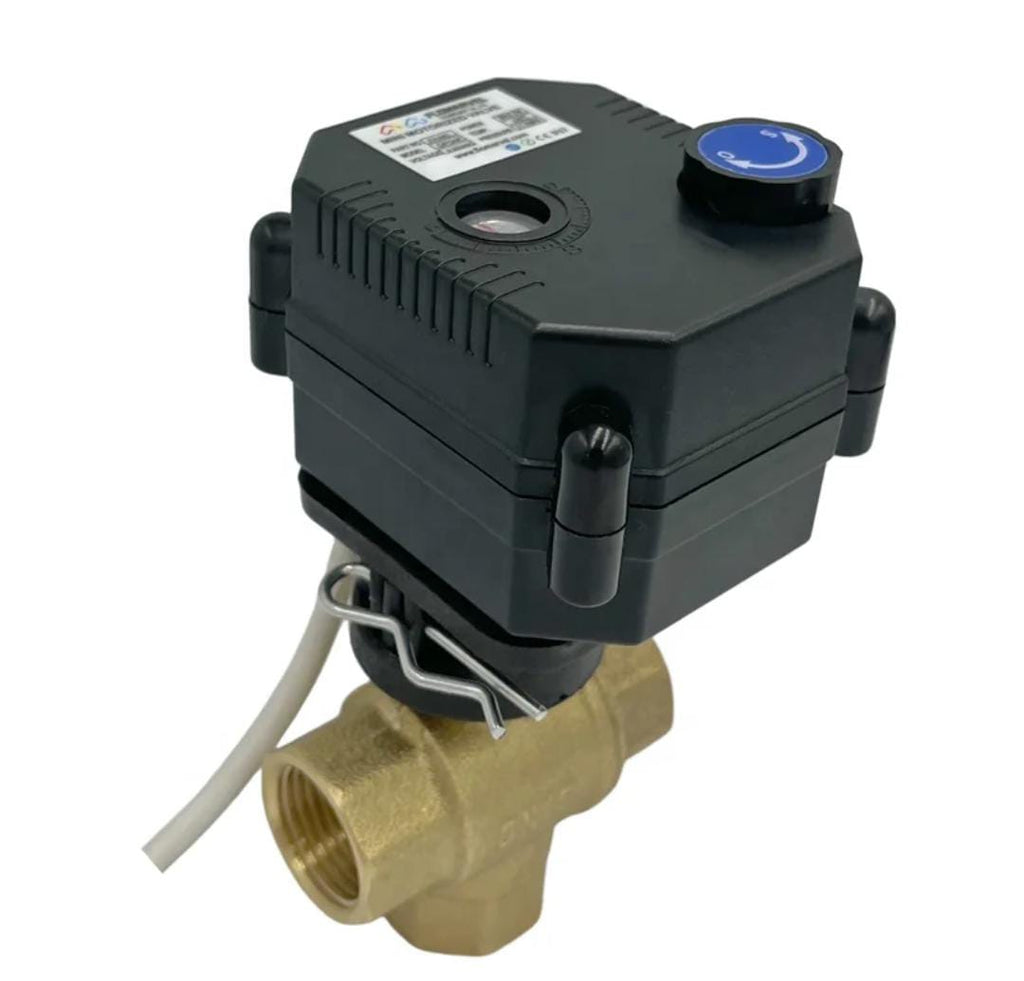

3-Way Motorized Brass Ball Valve – AC220V / DC12V / DC24V

Precision Flow Control, Fully Automated

The Trend-Nova Automatic 3-Way Brass Ball Valve gives you reliable, motorized control over water, air, and oil flow in HVAC, heating, and industrial systems. Built from durable brass with a synchronous motor actuator, it switches between divert, mix, and drain modes with ease — no manual effort required.

Key Features

• 3-Way Flow Control — Divert, mix, or drain flow with a single automated valve
• Brass Construction — Corrosion-resistant and built for long-term durability (rated 100,000 cycles)
• Motor + Manual Override — Synchronous motor drive with integrated limit contacts; manual button override included
• Multi-Voltage Support—Compatible with AC220V 50/60Hz, DC12V, and DC24V systems
• Fast Actuation — Full open/close cycle in 25 seconds
• Wide Media Compatibility — Suitable for water, air, and oil
• High Pressure Rated — Max. working pressure: 1.6 MPa / 232 psi
• IP50 Protection — Suitable for indoor HVAC and heating installations

Specifications

• Connector Type: DN15 (G1/2 inch)
• Voltage: AC220V 50/60Hz
• Max Power: 6W
• Working Pressure: 1.6 MPa / 232 psi
• Ambient Temperature: -15°C to 50°C
• Media Temperature: -5°C to 100°C
• Protection Rating: IP50
• Material: Brass + Plastic | Colour: Grey

Automate your flow control with confidence — engineered for precision and built to last.
