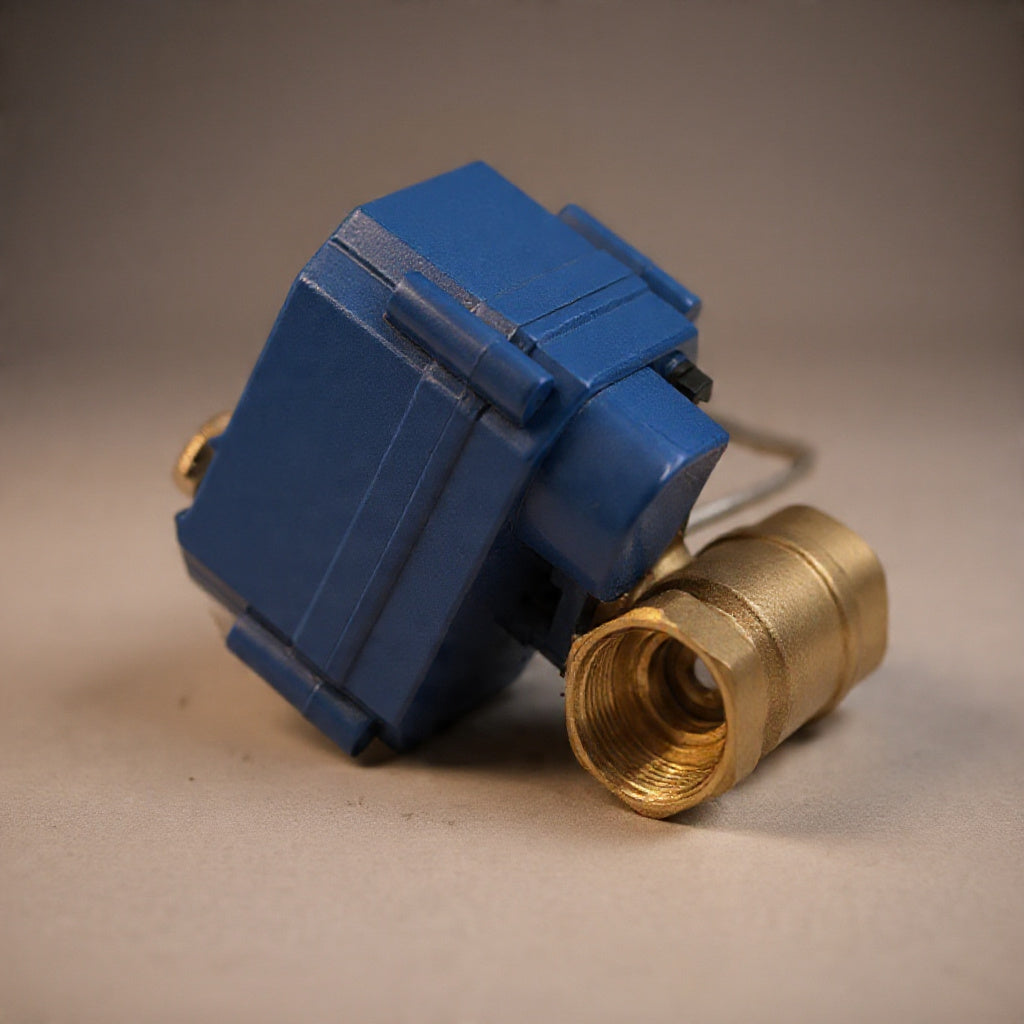

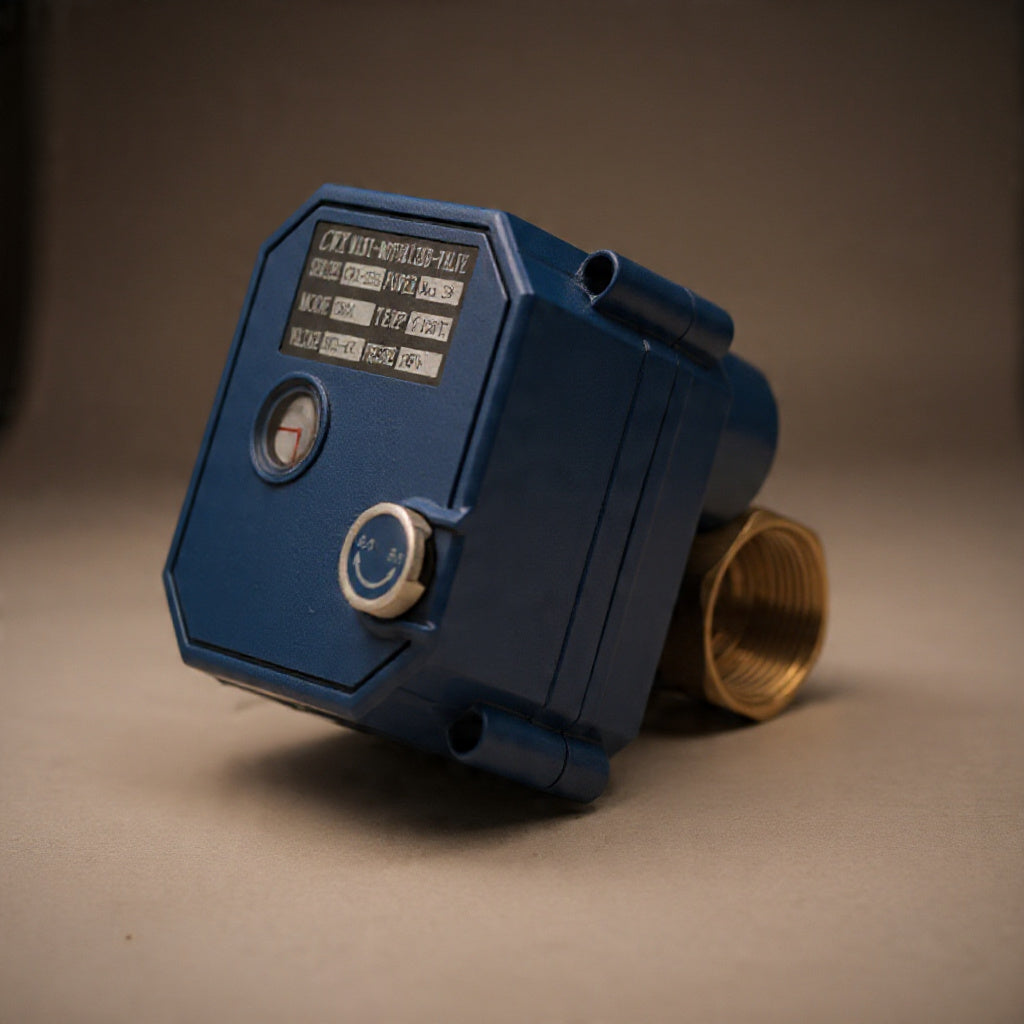

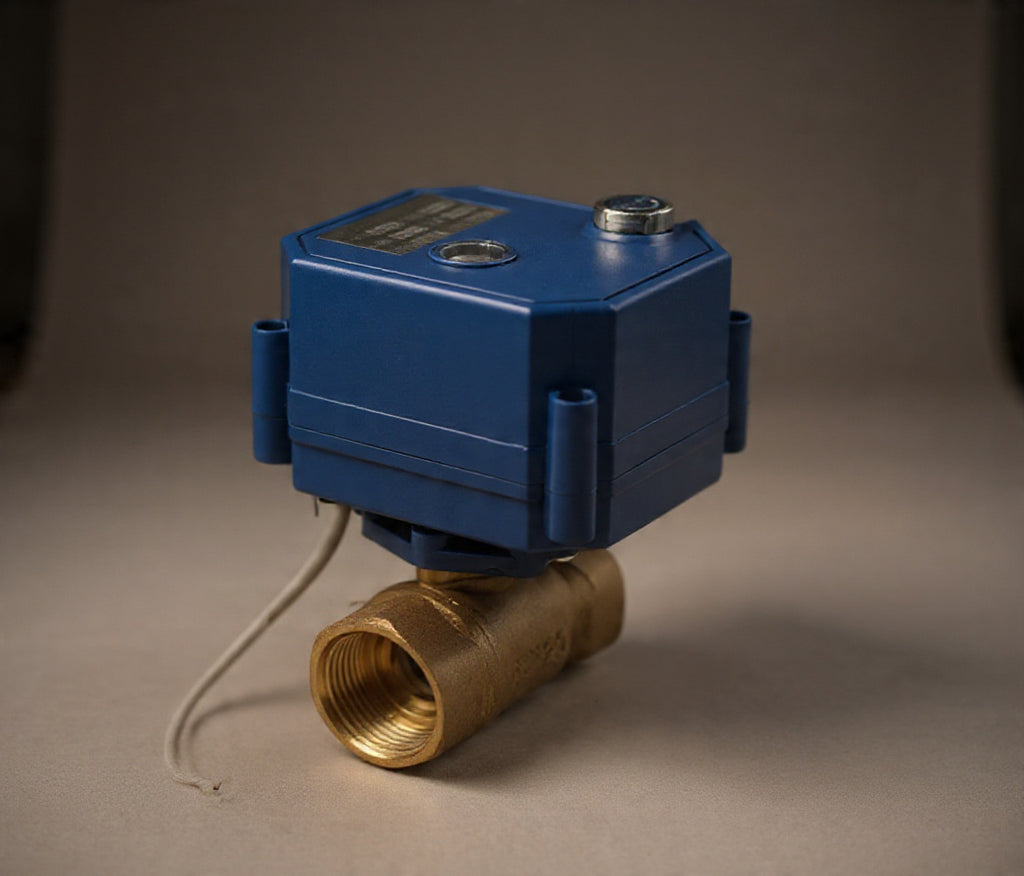

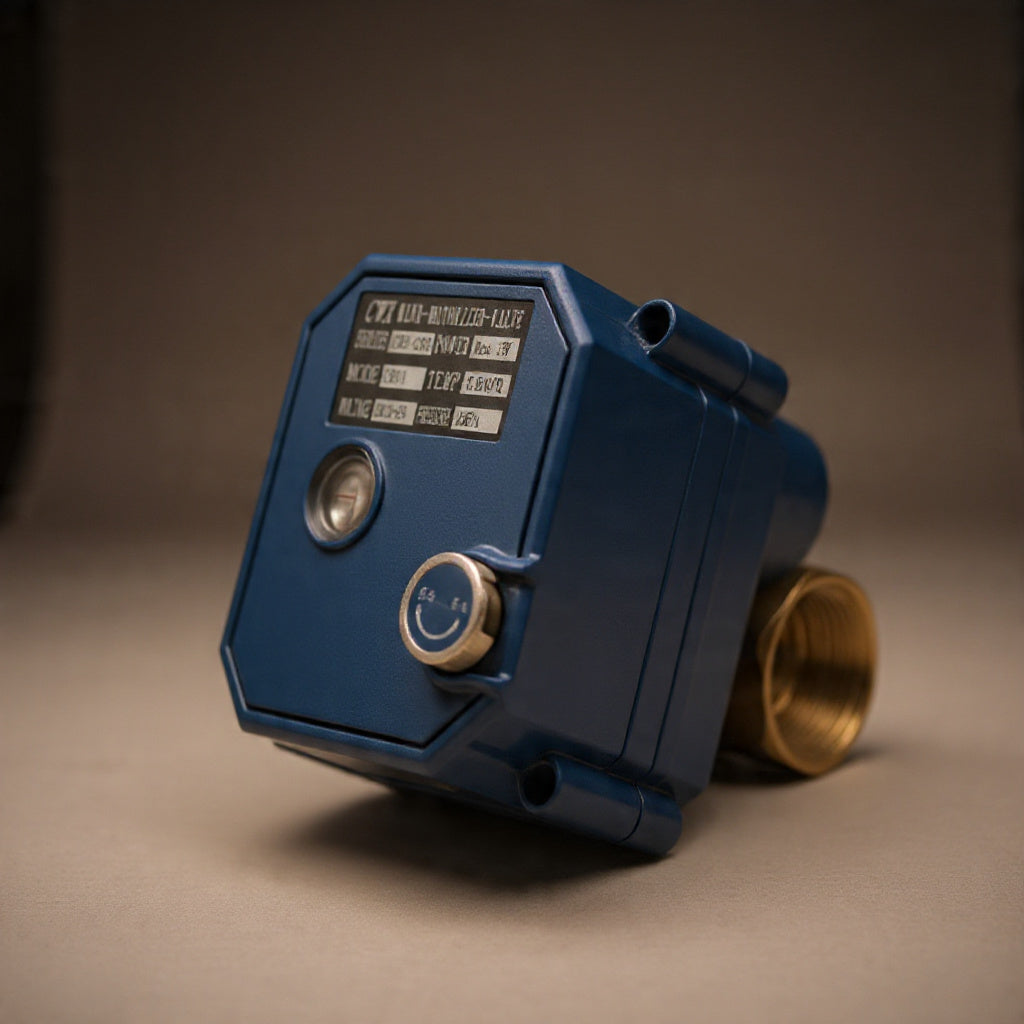

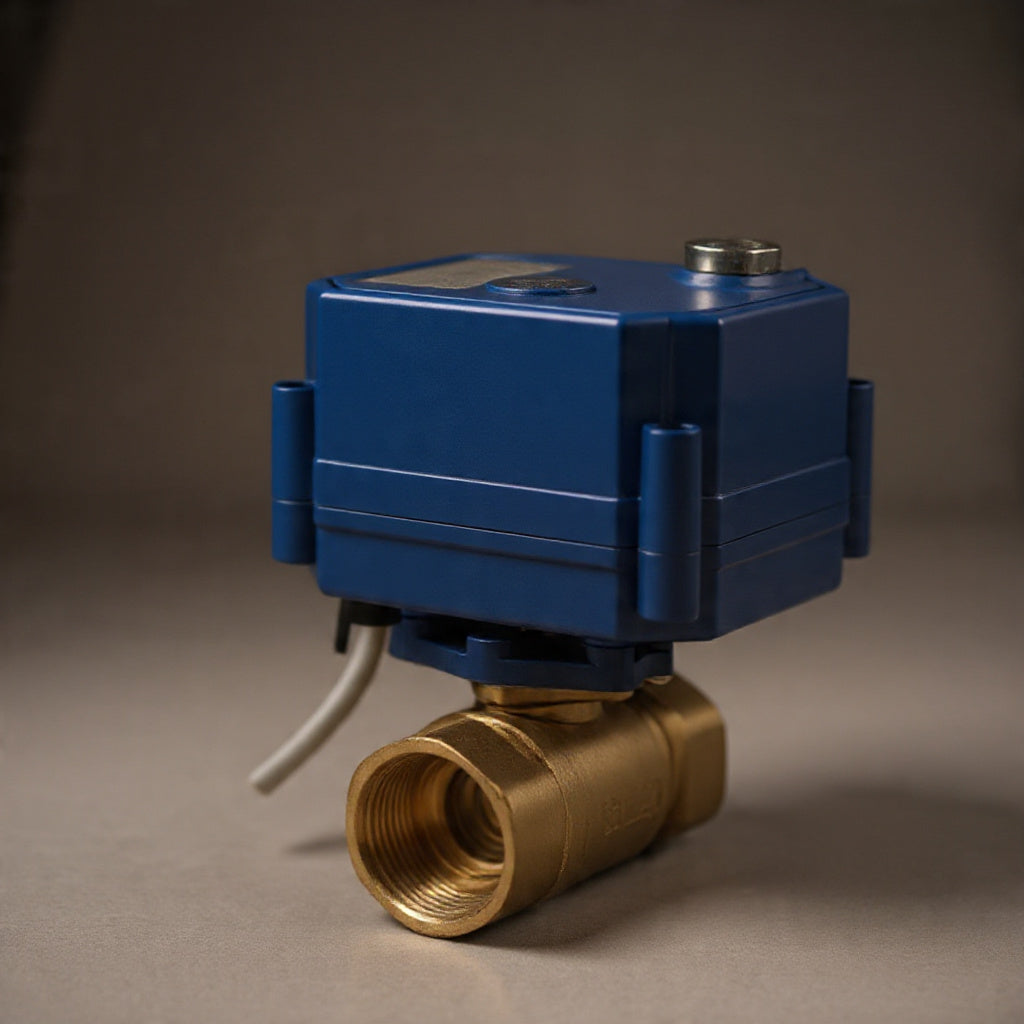

2-Way Motorized Brass Ball Valve – AC220V

Simple, Reliable On/Off Flow Control

The Trend-Nova 2-Way Electric Motorized Brass Ball Valve delivers automated shut-off control for HVAC, heating, and water systems. Compact, durable, and easy to install, it's the smart upgrade for any system that needs precise, hands-free flow management.

Key Features

• 2-Way Motorized Control — Full open/close automation via synchronous motor actuator
• Brass Body — Corrosion-resistant and built for long-term reliability
• Motor + Manual Override—Press-button manual switch for emergency or maintenance use
• Fast 25-Second Cycle — Fully opens or closes in just 25 seconds
• Wide Media Compatibility — Suitable for water, air, and oil systems
• High Pressure Rated — Max. working pressure: 1.6 MPa / 232 psi
• Long Service Life — Rated for 100,000 open/close cycles

Specifications

• Connector Type: DN15 (G1/2 inch)
• Voltage: AC220V 50/60Hz
• Max Power: 6W
• Working Pressure: 1.6 MPa / 232 psi
• Ambient Temperature: -15°C to 50°C
• Media Temperature: -5°C to 100°C
• Protection Rating: IP50
• Material: Brass + Plastic | Colour: Blue
• Package: 1 x Electric Actuator Ball Valve

Set it, forget it, and let your system run itself.
